◾Chipset：MSTAR8836
◾Lens：170 degree wide angle
◾Screen size：2.0-inch LCD +1.33 inch
◾Touch Screen：2.0-inch LCD（Rear Screen）
◾Video resolution:5K@30fps;4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/120fps/60fps/30fps
◾Pictures resolution: 50M/30M/24M/20M/12M/8M
Compression format: H.264
◾Video format：MP4
◾Pictures format：JPG
◾WIFI: Supported
EIS: Supports 4K@60fps/30fps; 2.7K@60fps/30fps; 1080P@60fps/30fps; 720P@60fps/30fps
◾Time-lapse video：Support
◾Slow motion：Support
Loop recording: Supports 1 minute, 3 minutes, 5 minutes.
◾Photo mode：Single shooting, timed shooting, continuous shooting
◾Time-lapse: Support
◾Pre recording mode:Support,Pre-recording time⏱️about: Normal Video:30FPS-20S;30FPS(EIS)-10S;60FPS-10S;60FPS(EIS)-5S
Motion detection: Supported
◾Driving mode：Support
◾Diving mode：Support(Settings-Filter-Red)
Digital zoom: Supports 1X-5X
◾Remote controller Support ("G9SE" With 2-in-1 with wireless Micro）
◾External Microphone: Support(Optional）
◾Wireless microphone：Only ""G9SE"" supported;""G9S not supported"
◾Automatic shut-down：Support 1 minutes, 3 minutes,5 minutes
◾Screen saver：Support 1 minutes, 3 minutes,5 minutes
◾Language:Chinese,English,Japanese,Korean,Russian,German,French,Italian,Spanish,Portuguese,Thai,Vietnamese,Serbian,Croatian,Slovenian,Dutch,Turkish act.
◾APP: SupCam Pro
◾Memory card: Micro SDHC Card，U3，Max 128GB
◾USB Port：Type-c，Support MSDC mode and PC Cam
Main Features
●Ultra-clear 5K●50MP● Wide angle 170D● Waterproof 30M●Dual screen● WIFI● 5ⅩZoom
●EIS Anti-shake● Touch screen●Remote
MStar 8836 + Sony IMX386 Sensor
●CPU: MStar 8836 Chip 5K30fps 4K 60fps.
●Sensor: Sony IMX386 12MP 1/2.3 ".
●Structure: F2 .5,F2.68mm,7 layer glass lens.Angle: Lovel 155/diagonal 170*.
5K HD Resolution
■Video: 5K30fps 4K60/30fps 2.7K60/30fps; 1080P60/30fps 720P/120/60/30fps●Photo Resolution: 50M/30M/24M/20M/12M/8M

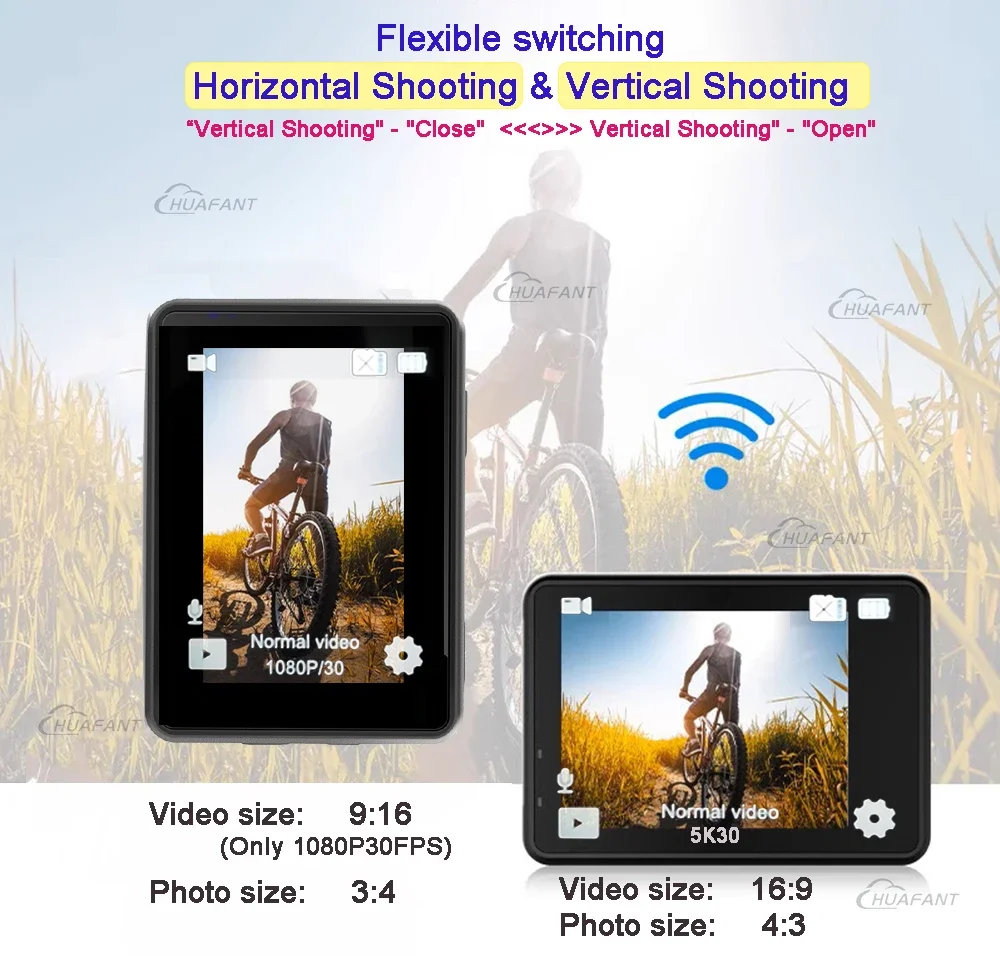

Flexible switching Horizontal Shooting& Vertical Shooting
Horizontal Shooting----“Vertical Shooting" - "Close"
●Video size: 9:16 (Only 1080P30FPS)
●Photo size: 3:4
Vertical Shooting---Vertical Shooting" - "Open"
●Video size: 16:9
●Photo size: 4:3

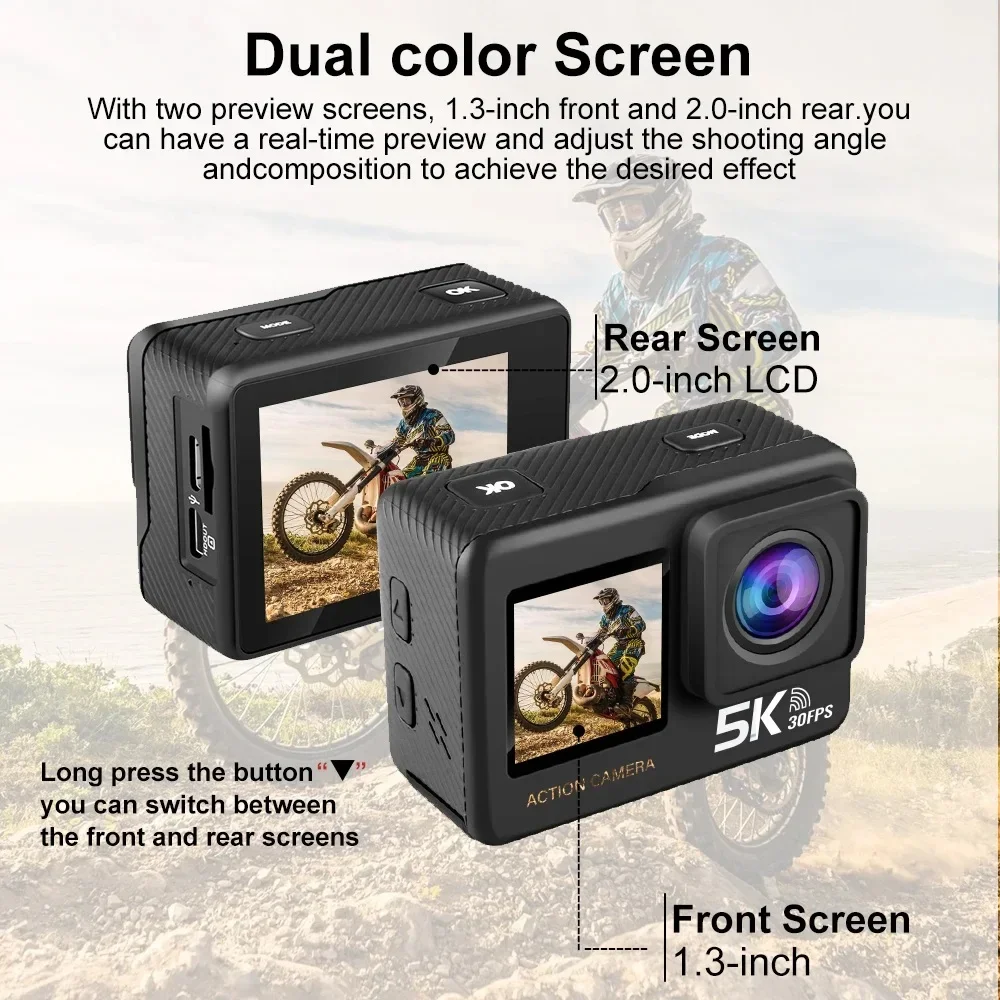

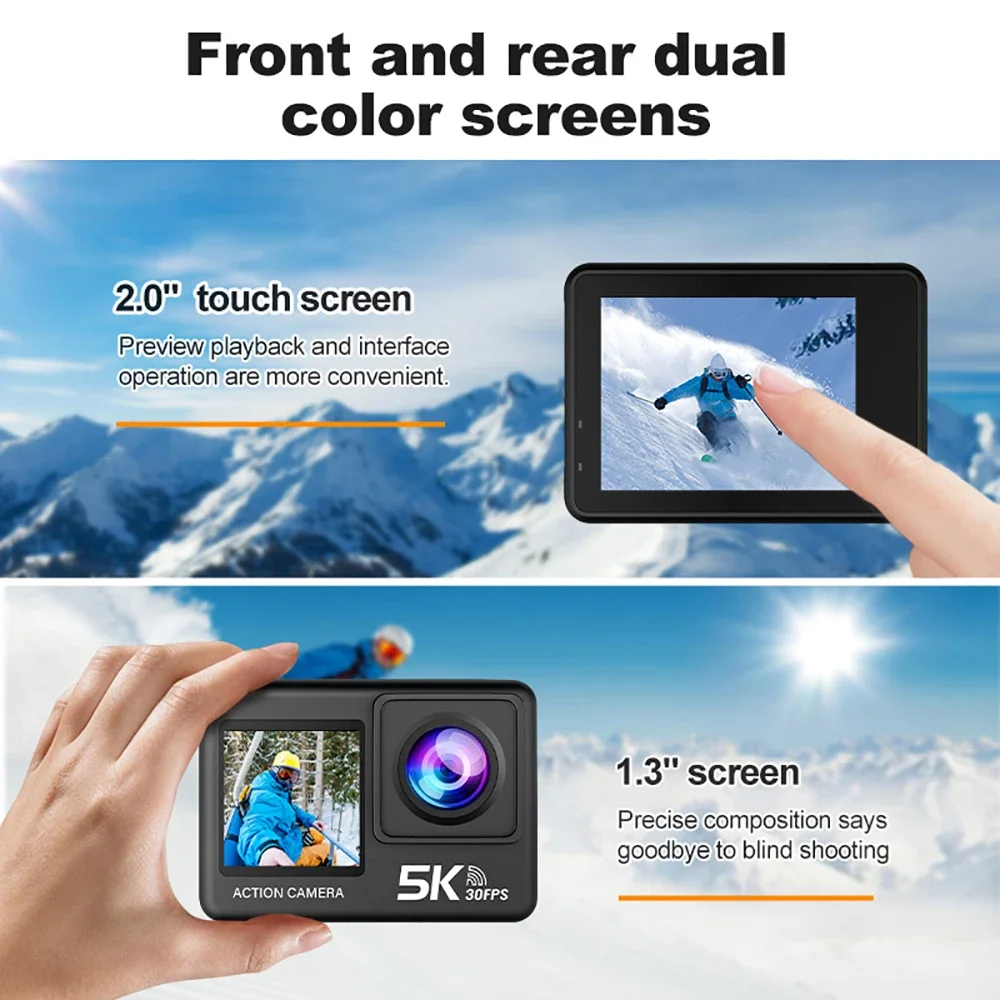

Dual Color Screen
●1.3 " front HD screen goodbye to blind photography with precise composition.
●2.0 touch screen: HD rear large screen operation at a glance.
One-Button switching Between Front and Rear Screens
■Long press the button "down"- then you can switch between the front and rear screens.

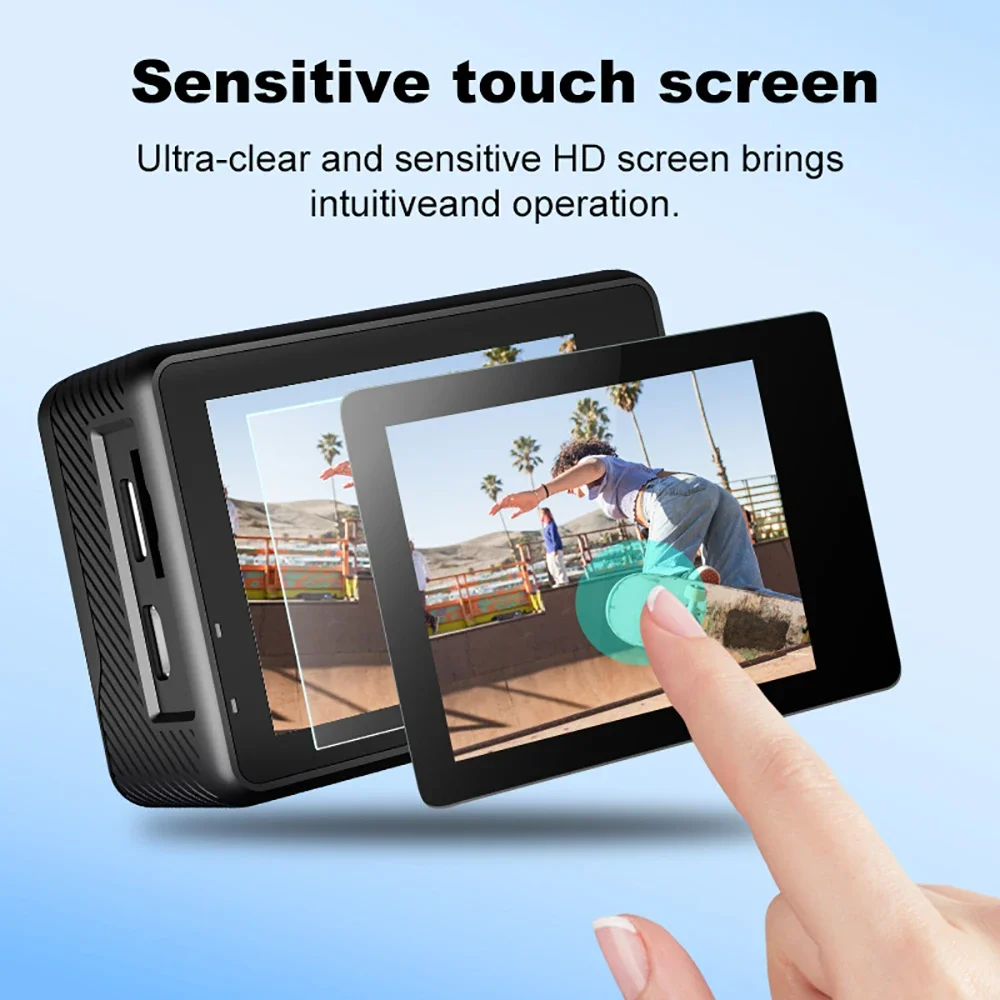

2-Inch Touch Screen
● The 2 inch responsive touch screen with IPS display makes it very easy to control this small but powerful action camera.
6-AXIS Anti-shake (EIS)
◾Built-in advanced 6-axis electronic image stabilization(Els), Adopts 6-axis anti-shaketechnology to deliver steady and smooth videos, that ensures excellent experience inup to 4K resolution
◾EIS：
☑️Support 4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/60fps/30fps
EIS does not support 5K30FPS videos and 720P120FPS videos.
5XDigital Zoom
●Lossless zoom can be achieved.Easily zoom in on the scene up to 5X at maximum.
Pre Record Mode
■ Turn on "Pre Record" and when you press "Shutter", you can record the
video in advance
■Pre-recording time:About
■Normal Video:30FPS-20S;
■Normal Video 30FPS(EIS)-10S;
■Normal Video60FPS-10S;
■Normal Video 60FPS(EIS)-5S
Motion Detection
●Turn on "Motion Detection"
(Press the "OK" button to cancel motion detection, or select "OFF" from the lower menu of motion detection)
●AUTO Stop: If there are no moving objects that last for 15 seconds, the shooting will automatically stop.
●AUTO Start: If there are moving objects again, the camera will automatically start shooting.
Wide Angle 170(With Distortion)
●170° wide angle, magnified field of view, clear imaging, upgraded texture

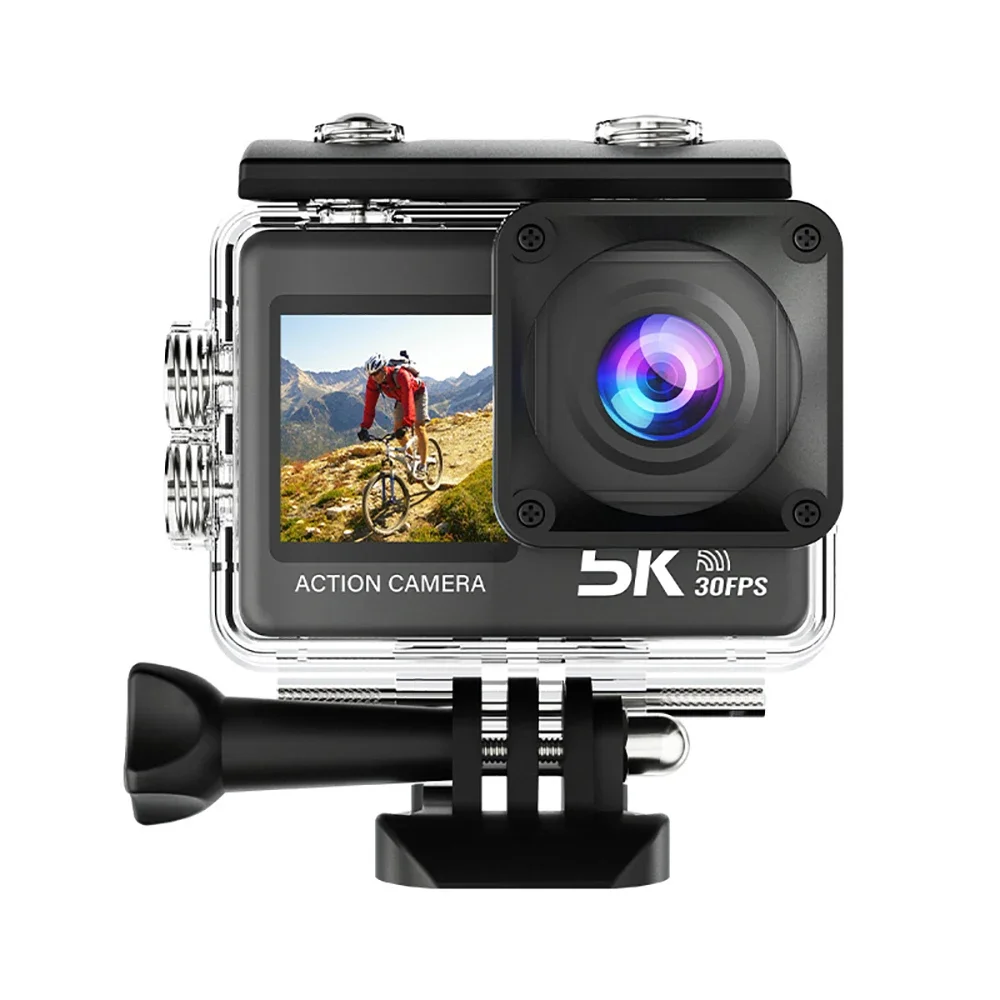

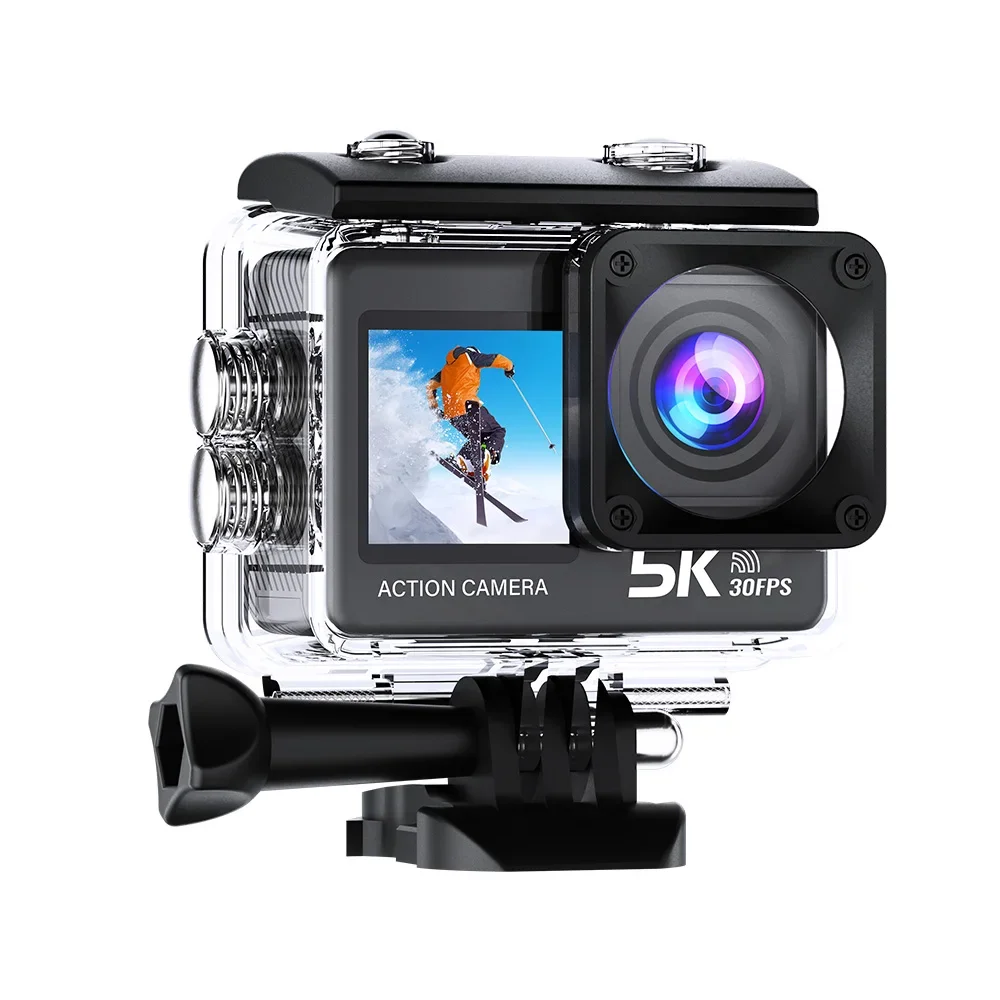

Deep Waterproof 30M
● Delivered exclusive waterproof case, durable and anti-fall supports shooting at 30 meters underwater

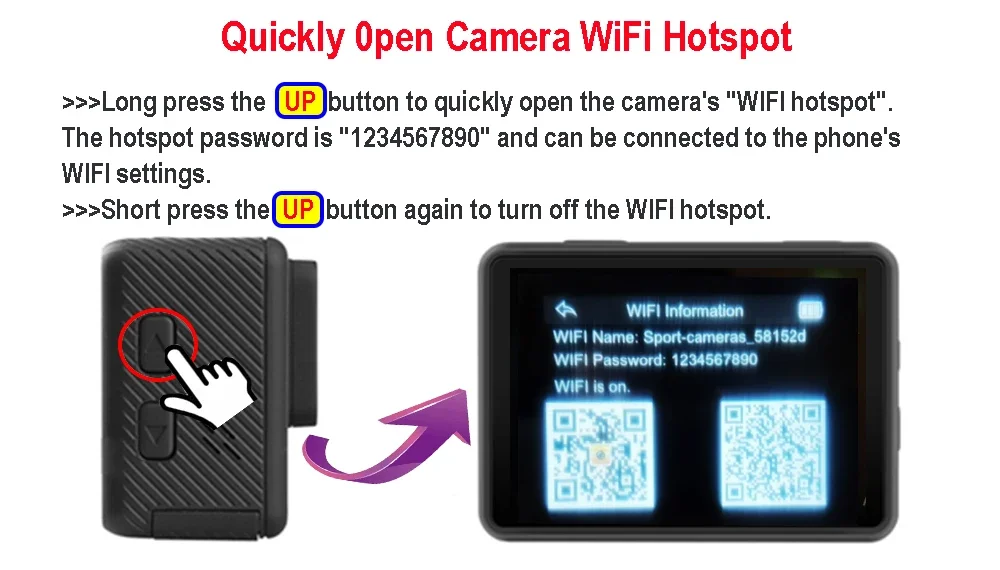

Quickly 0pen Camera WiFi Hotspot
■Long press the “UP” button to quickly open the camera's "WIFI hotspot".
The hotspot password is "1234567890" and can be connected to the phone's
WIFI settings.
■Short press the “UP” button again to turn off the WIFI hotspot.
WiFi Connection + Apple& Android App
●Through the camera APP, you can not only shoot in real time,but also quickly upload photos and video to your mobilephone through the built-in WIFl, and share the wonderful moments to your social software.
●App: SupCam Pro

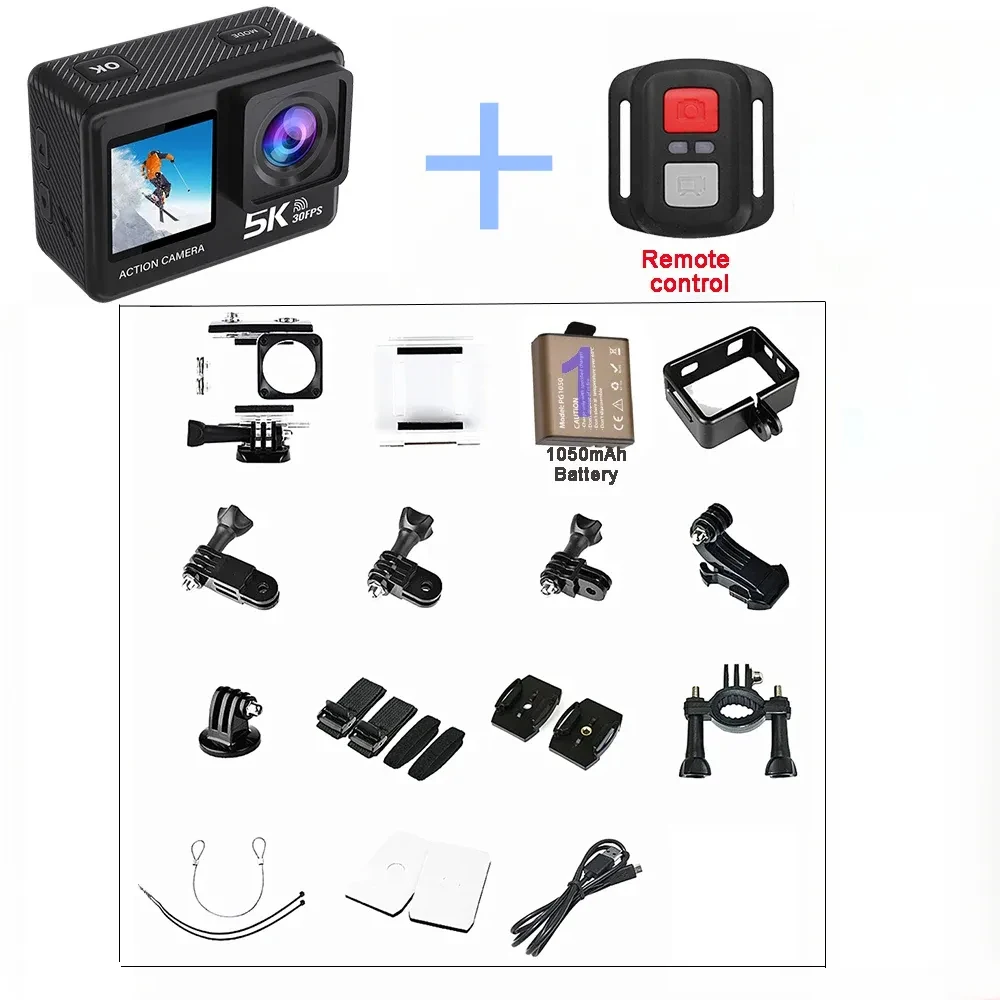

Remote Control
● The remote control that supports 2.4GHz can make your hands completely free it allows you to control the camera from a distance.
● Remote controller not waterproof.When using near the water, it is recommended to put the remote control into a sealed bag.
● Only G9S With.

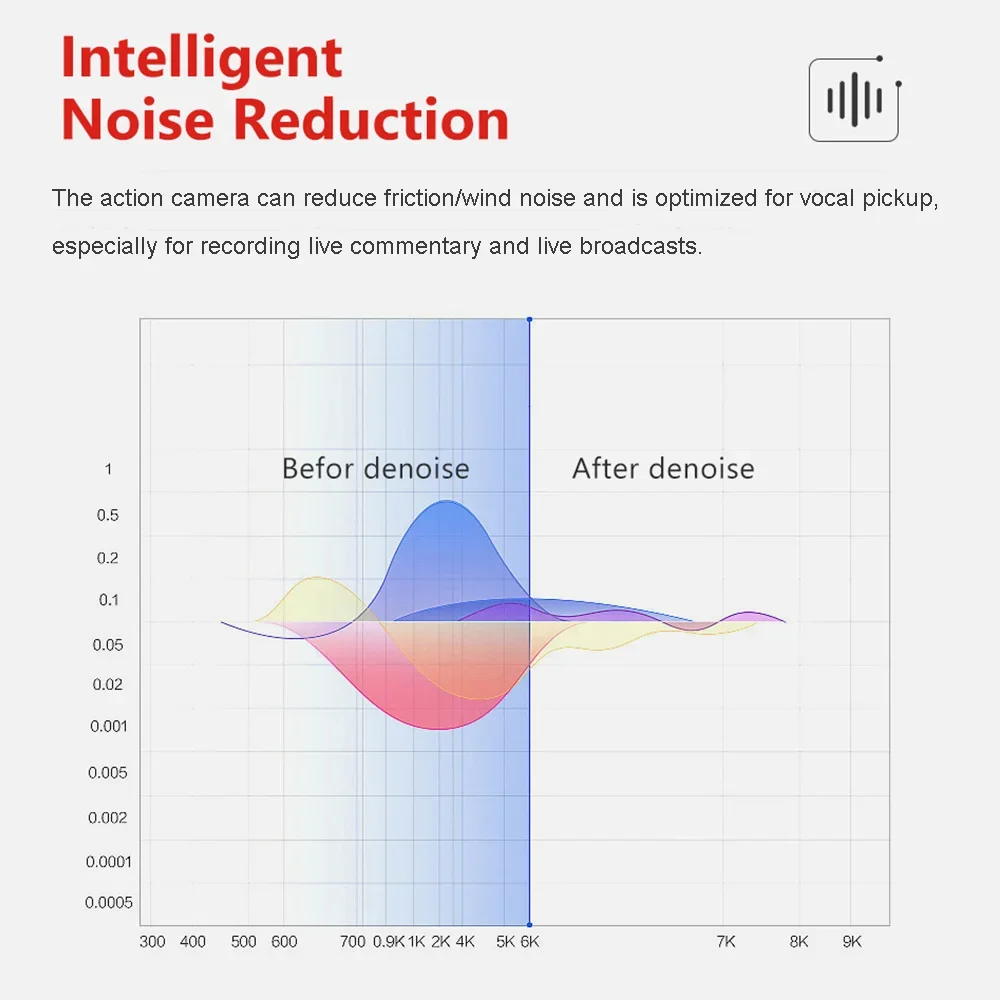

Intelligent Noise Reduction
■The action camera can reduce friction/wind noise and is optimized for vocal pickup, especially for recording live commentary and live broadcasts.
Car DVR Record Mode
■The camera with car mode to solve car video record problem.The best setting is 1080P 60fps / looping Record.
Works As 1080P Webcam
■The action camera can be used as a full HD 1080P web camera through the USB cable connected and play driver free.

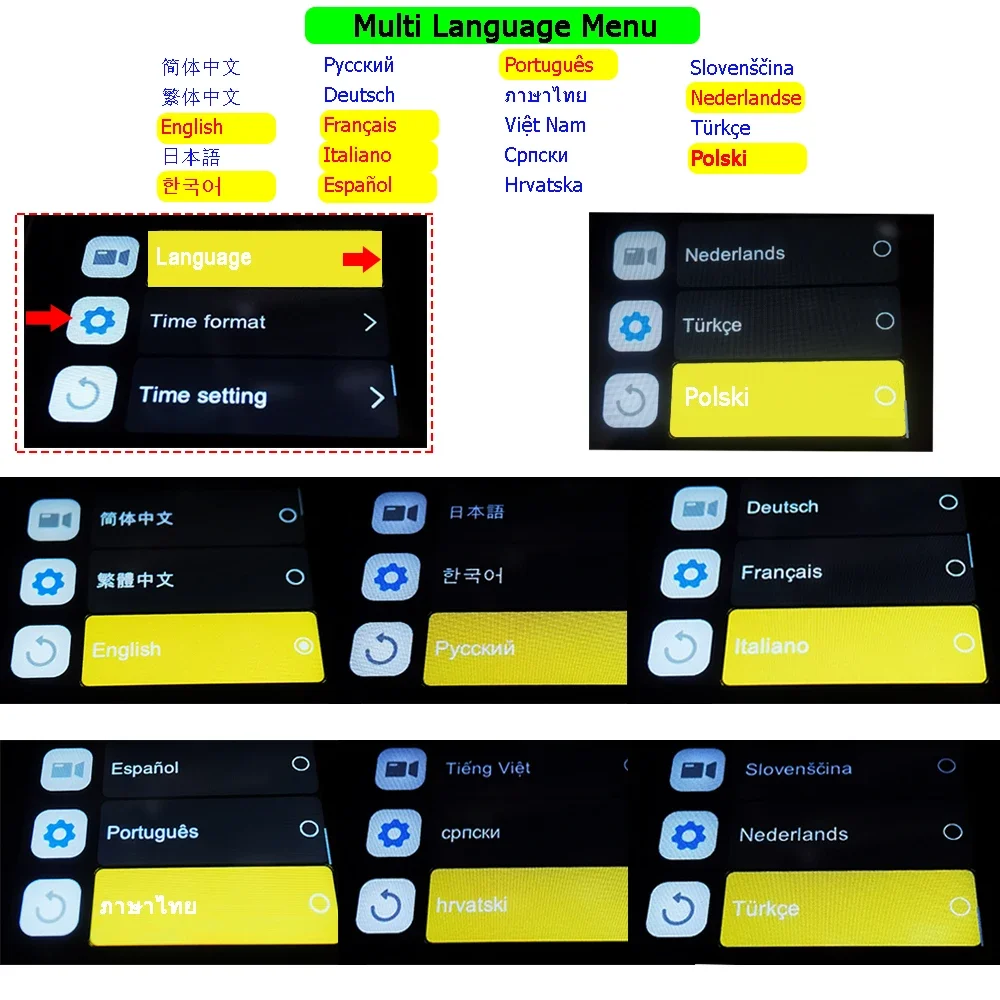

Multi Language Menu
Chinese, English, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Vietnamese, Serbian, Croatian, Slovak, Dutch, Turkish, Polish
